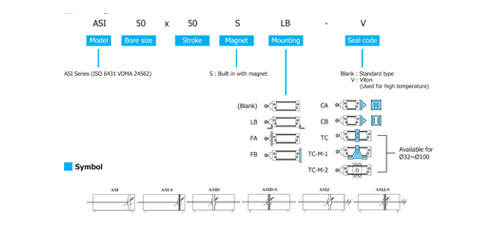

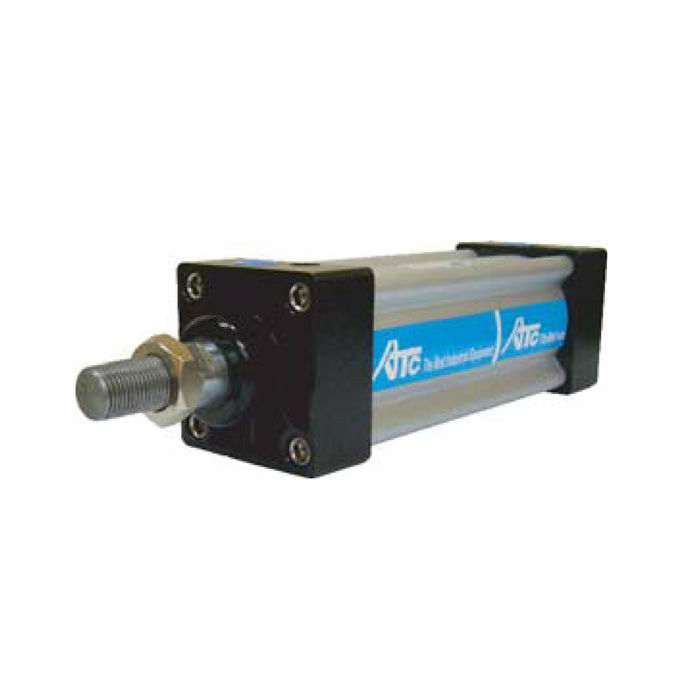

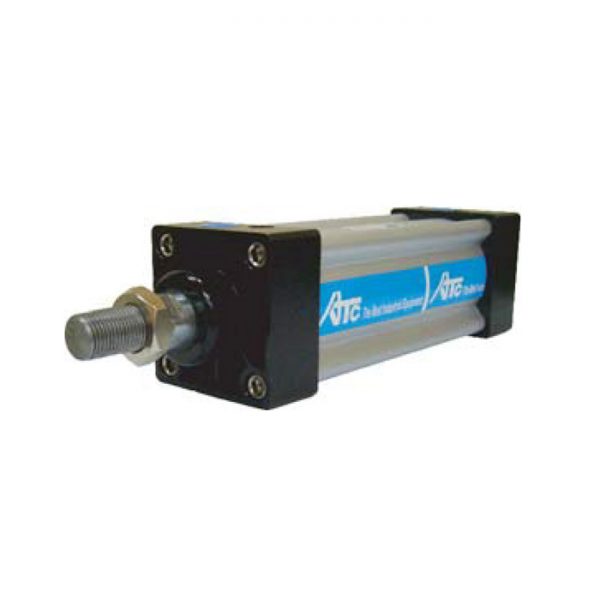

Product DetailsOrdering Code
| Bore Size | mm | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
|---|---|---|---|---|---|---|---|---|---|---|
| Rod Diameter | mm | 12 | 16 | 20 | 20 | 25 | 25 | 32 | 40 | 40 |
| Port Size | inch | 1/8 | 1/4 | 1/4 | 3/8 | 3/8 | 1/2 | 1/2 | 3/4 | 3/4 |
| ASI Standard Stroke | mm | 25~300 | 25~400 | 25~500 | 25~500 | 25~600 | 25~600 | 25~800 | 25~800 | 25~800 |
| ASID,ASIJ Standard stroke | mm | 25~200 | 25~200 | 25~200 | 25~200 | 25~300 | 25~300 | 25~300 | 25~300 | 25~300 |
| ASI maximun stroke | mm | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 1500 | 1500 | 1500 |
| ASID, ASIJ maximum | mm | 200 | 200 | 200 | 200 | 300 | 300 | 300 | 300 | 300 |
| ASIJ adjusting stroke | mm | 25, 50, 70 | ||||||||
| Action type | Double Acting | |||||||||
| Media | Air | |||||||||
| Pressure range | kgf/cm² | 1.00 ~ 9.00 | ||||||||
| Temperature range | °C | 0 ~ 70 (Viton : 120) | ||||||||
| Speed range | mm/sec | 50 ~800 | ||||||||
| Magnet type | Built in with magnets (S) | |||||||||
| Cushion Type | Variable | |||||||||
| ASI Mounting Type | Basic (Blank), Foot (LB), Flange (FA FB), Clevis (CA CB CR), Trunnion (TC TC-M) | |||||||||
| ASID,ASIJ mounting type | Basic (Blank), Foot (LB), Flange(FA), Trunnion (TC TC-M) | |||||||||
| End rod type | I knuckle (I), Y knuckle (Y), Floating joint(FJ),Universal joint(EJ) | |||||||||
| Sensor switch type | Light in front (CS1-F), Light on top (CS1-U) | |||||||||
| Sensor switch holder | SI32-IH | SI40-IH | SI50-IH | SI63-IH | SI80-IH | SI100-IH | SI125-SH | SI160-SH | SI200-SH | |
| Additional variants | Stainless steel piston rod, female, extended, special thread piston rod | |||||||||
