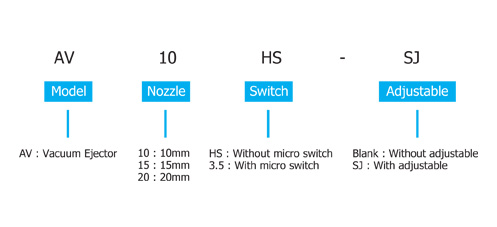

Product DetailsOrdering Code
| Model | AV10-HS | AV15-HS | AV20-HS | |
|---|---|---|---|---|
| Media | Air | |||
| Nozzle diameter | 1mm | 1.5mm | 2mm | |
| Exhaust capacity | 27L/min | 63L/min | 110L/min | |
| Air consumption | 44L/min | 100L/min | 180L/min | |
| Maximum vacuum value | -91.8 Kpa (-690mmHg) | |||
| Supply air pressure | 5.0 kgf/cm2 (0.50 Mpa) | |||
| Pressure range | 1.0 ~ 6.0 kgf/cm2 (0.10 ~ 1.60 Mpa) | |||
| Service temperature range | 0 C ~ 60 C | |||
| Speed range | 50 ~ 700 mm/s | |||
| Lubricaion | Not Required | |||
| Setting range | S with switch | -39.9KPa (-300mmHg) | ||
| SK value adjustable | -20.0 ~ -53.2KPa (-150 ~ -400mmHg) | |||
| Setting value before operational |
S with switch | -39.9KPa (-300mmHg) | ||
| SK value adjustable | -46.6KPa (-350mmHg) | |||
| Accuracy | ±5.3 (±40 mmHg) | |||
| Hysterics | 4.0 ~ 13.3KPa (30 ~ 100mmHg) | |||
| Electrical rating | AC125V:5A,AC250V:3A | |||
