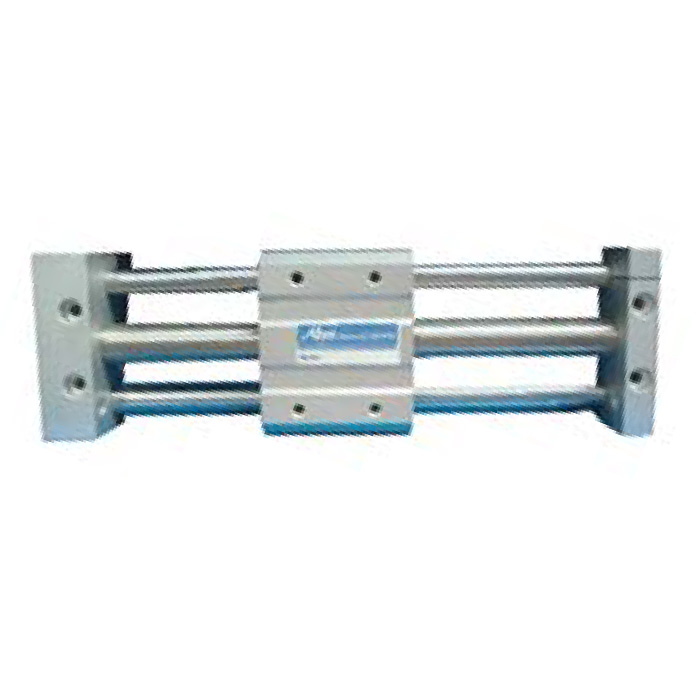

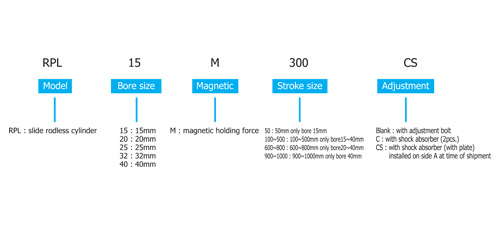

Product DetailsOrdering Code
| Model | RPL15 | RPL20 | RPL25 | RPL32 | RPL40 |
|---|---|---|---|---|---|
| Bore Size | 15mm | 20mm | 25mm | 32mm | 40mm |
| Maximum available stroke | 750mm | 1000mm | 1500mm | ||
| Shock absorber | ACM0805 | ACM1006 | ACM1411 | ACM2015 | |
| Media | Air | ||||
| Pressure range | 1.8 ~ 7. kgf/cm2 | ||||
| Ambient and fluid temperature | – 10°C~ 60°C | ||||
| Cushion | Rubber bumper (stadard, with stroke adjuster) Shock absorber (option) |
||||
| Lubrication | Not required | ||||
| Mounting orientation | Unrestricted | ||||
| Standard equipment | Auto switch mounting rail | ||||
